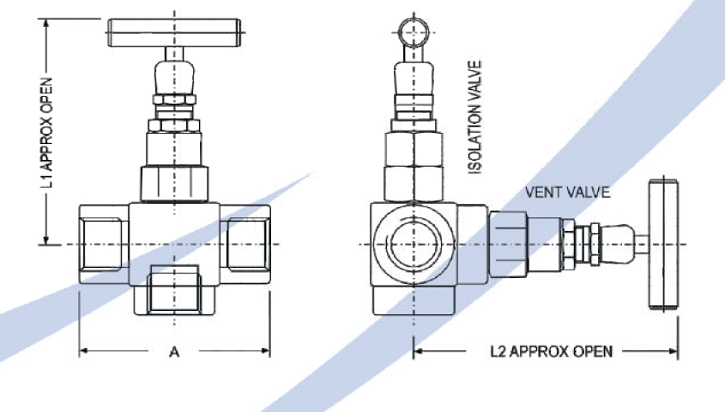

Two valve manifold is designed in a single block with female screwed inlet and outlet port combing isolation valve and calibration / vent valve. Generally used on static pressure transmitters, switches or gauges.
| PROCESS PORT | GAUGE PORT | DRAIN PORT | A | L1 | L2 |
|---|---|---|---|---|---|
| 1/2" NPT (F) | 1/2" NPT (F) | 1/4" NPT (F) | 70 | 98 | 110 |
| 1/2" NPT (F) | 1/2" NPT (F) | 1/2" NPT (F) | 70 | 98 | 110 |
| 3/4" NPT (F) | 1/2" NPT (F) | 1/2" NPT (F) | 70 | 98 | 110 |
| 1/2" BSP (F) | 1/2" BSP (F) | 1/2" BSP (F) | 70 | 98 | 110 |
| 1/2" NBSW | 1/2" NPT (F) | 1/2" NPT (F) | 70 | 98 | 110 |
| 3/4" NBSW | 1/2" BSP (F) | 1/2" BSP (F) | 70 | 98 | 110 |

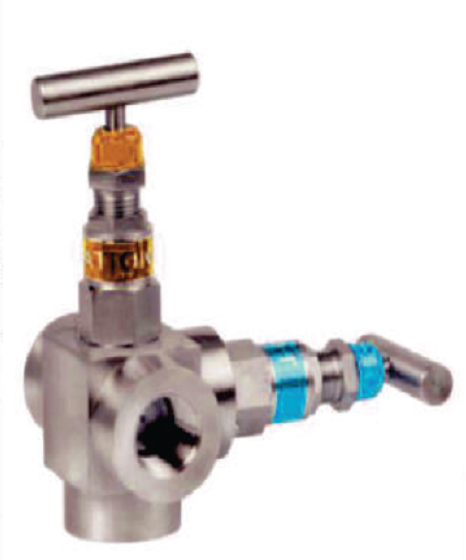

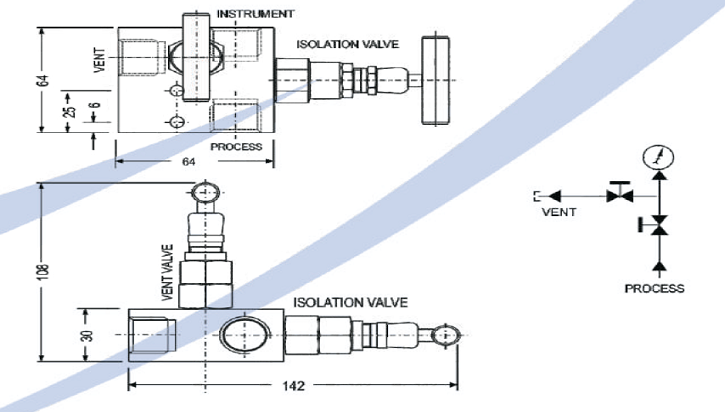

Two valve manifold is designed in a single block with female screwed inlet and outlet port combing isolation valve and calibration / vent valve. Generally used on static pressure transmitters, switches or gauges.
GAUGE IN LINE WITH DRAIN / VENT AND PROCESS AT RIGHT ANGLE
| 1/2" BSP (F) | 1/2" NPT (F) | 1/2" NPT (F) | 70 | 98 | 110 |
| 3/4" NPT (F) | 3/4" NPT (F) | 3/4" NPT (F) | 70 | 98 | 110 |
| 3/4" NPT (F) | 1/2" NPT (F) | 1/2" NPT (F) | 70 | 98 | 110 |
| 1/2" NBSW | 1/2" BSP (F) | 1/2" BSP (F) | 70 | 98 | 110 |
| 3/4" NBSW | 1/2" NPT (F) | 1/2" NPT (F) | 70 | 98 | 110 |
| Test Pressure: | @ 25 oC Room Temperature |
|---|---|
| Hydostatic: | Body - 30 Kg/cm2, Seat - 20 Kg/cm2 |
| Pneumatic: | Seat - 40 Kg/cm2 |
| Gland Packing: | PTFE: Standard, GRAPHOIL: Temperatures above 180oC |
| Material: | A 105, A 479 SS 304, A479 SS 316, A 182 Gr. F 316 SS Monel, Hasteolly. |
| Finish: | CS Zinc plated and dichromated, SS-Natural |
| Option: | Drain plug. Three piece union for gauge positioning |

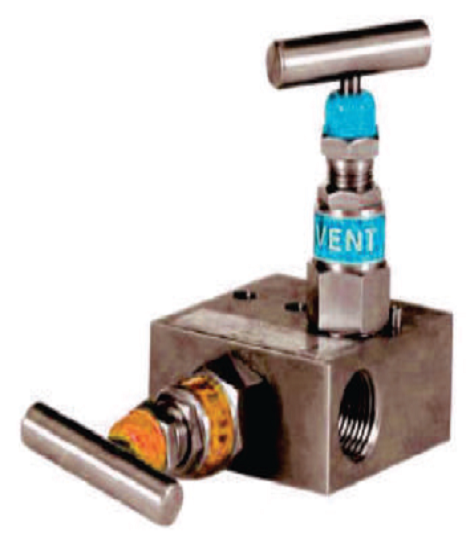

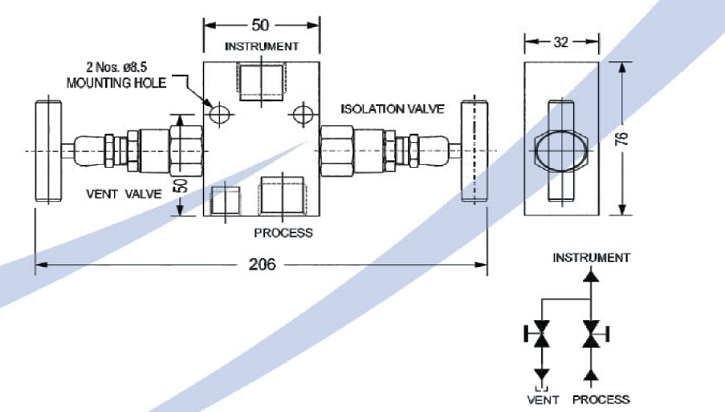

Two valve manifold is designed in a single block with female screwed inlet and outlet port combining isolation valve and calibration / vent valve. Generally used on static pressure transmitters, switches or gauges.
| Connections: | Process : 1/2" NPT (F), Instrument : 1/2" NPT (F), Drain / Vent : 1/4" NPT (F), 1/2" NPT (F) |
|---|---|
| Test Pressure: | @25oC Toom Temperature |
| Hrdrostatic: | Body - 630 Kg/cm2, Seat - 420 Kg/cm2 |
| Pneumatic: | Seat - 60 Kg/cm2 |
| Gland Packing: | PTFE : Standard., Graphoil : Temperatures above 180oC |
| Material: | A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy |
| Finish: | Drain Plug. Three piece union for gauge positioning. |
| Accessory: | Mounting Bolts - IS : 1364 - 1960 - 2 Nos. |

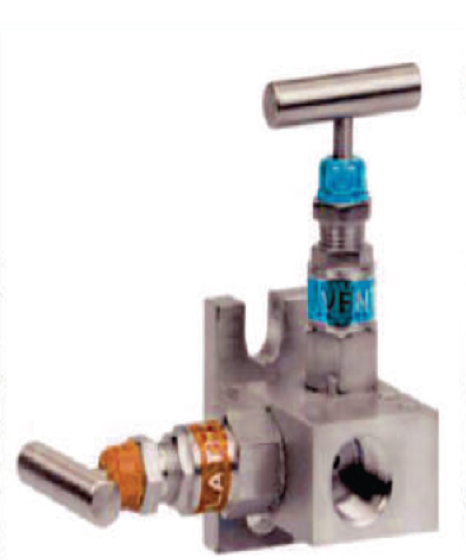

Two valve manifold is designed in a single block with female screwed inlet and outlet port combining isolation valve and calibration / vent valve. Generally used on static pressure transmitters, switches or gauges.
| Connections: | Process : 1/2" NPT (F), Instrument : 1/2" NPT (F), Drain / Vent : 1/4" NPT (F), 1/2" NPT (F) |
|---|---|
| Test Pressure: | @25oC Toom Temperature |
| Hrdrostatic: | Body - 630 Kg/cm2, Seat - 420 Kg/cm2 |
| Pneumatic: | Seat - 60 Kg/cm2 |
| Gland Packing: | PTFE : Standard., Graphoil : Temperatures above 180oC |
| Material: | A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy |
| Finish: | Drain Plug. Three piece union for gauge positioning. |
| Accessory: | Mounting Bolts - IS : 1364 - 1960 |

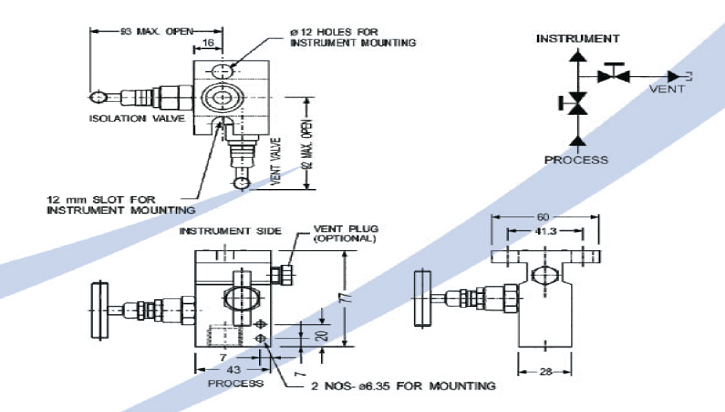

Two valve manifold is designed in a single block with female screwed inlet and outlet port combining isolation valve and calibration / vent valve. Generally used on static pressure transmitters, switches or gauges.
| Connections: | Process : 1/2" NPT (F), Instrument : Flanged, Drain / Vent : 1/4" NPT (F), 1/2" NPT (F) |
|---|---|
| Test Pressure: | @25oC Toom Temperature |
| Hrdrostatic: | Body - 630 Kg/cm2, Seat - 420 Kg/cm2 |
| Pneumatic: | Seat - 60 Kg/cm2 |
| Gland Packing: | PTFE : Standard., Graphoil : Temperatures above 180oC |
| Material: | A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy |
| Finish: | Drain Plug. Three piece union for gauge positioning. |
| Accessory: | Mounting Bolts - IS : 1364 - 1960 - 2 Nos., Interface seal - PTFE / VITON = 1 Nos. |
Designed for applications to facilitate remote mounting of differential pressure instruments. Dimensions shown above are for the standard 54 mm or 21/8 inch instrument connection. The manifold is also available for instruments with other center distances for instrument connection (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult us for these dimensions, usefull for installations in remote fields eliminating conventional method of piping.
| Connections: | Process : 1/2" NPT (F), Instrument : 1/2" NPT (F), Drain / Vent : 1/4" NPT (F), 1/2" NPT (F) |
|---|---|
| Finish: | CS: Zinc Plated and Dichromated, SS : Natural |
| Option: | Drain port on instrument side with drain plug (Dimension 64 becomes 82) Test Port on processside with plug |
| Accessory: | Mounting Bolts - IS : 1364 - 1960 - 2 Nos. |

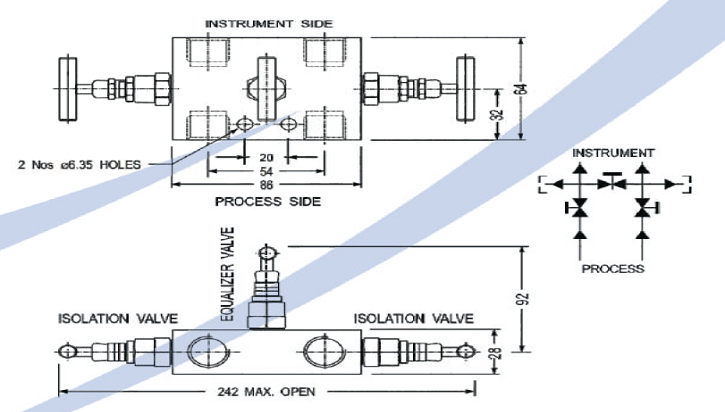

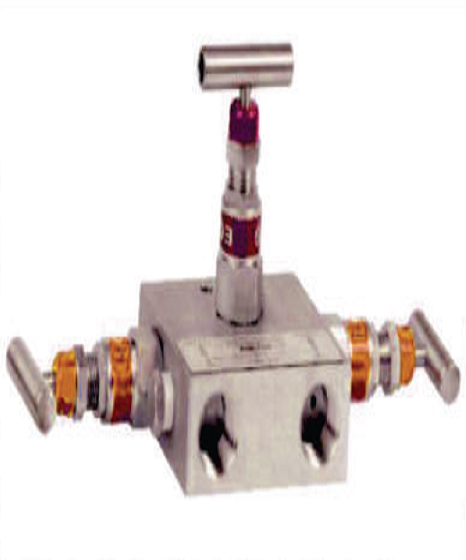

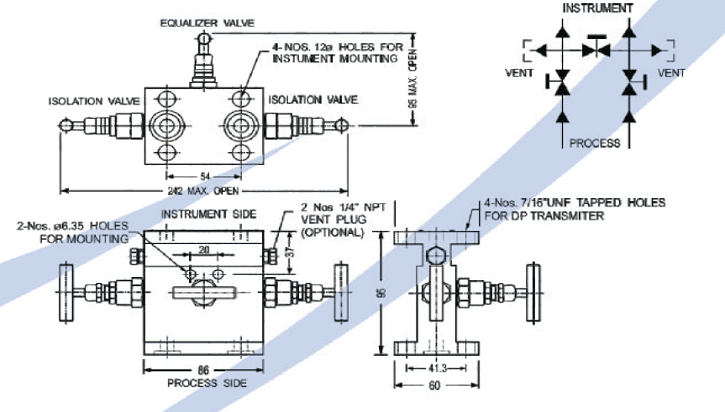

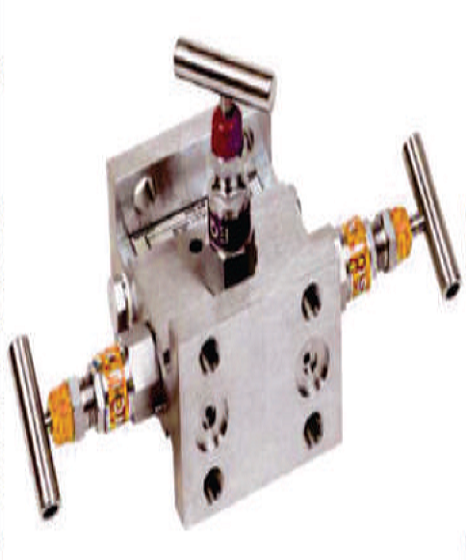

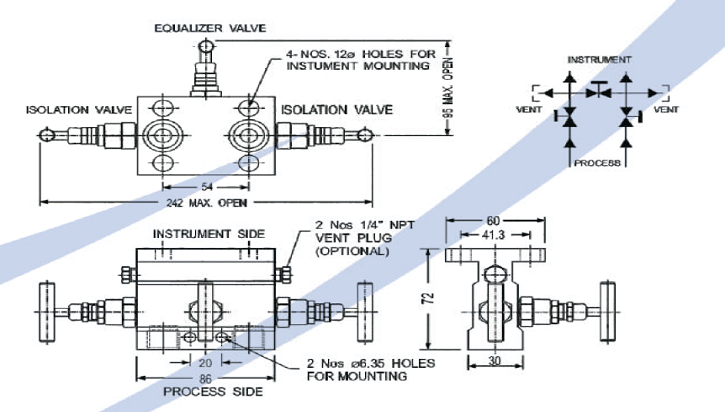

Designed for direct mounting on to standard differential pressure transmitters. This manifold block incorporates three valves, two main process isolation valves and one equalizing valve.
Dimensions shown above are for the standard 54 mm or 21/8" inch instrument connection Center distance found in mejority of instruments. The manifold is also available for instruments with other center distances for instruments connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult us for these dimensions.
| Connections: | Process : 1/2" NPT (F), Instrument : Direct Instruments, Drain / Vent : 1/4" NPT (F) |
|---|---|
| Test Pressure: | @25oC Room Temperature |
| Hydostatic: | Body - 630 Kg/cm2, Seat - 420 Kg/cm2 |
| Pneumatic: | Seat - 60 Kg/cm2 |
| Gland Packing: | PTFE : Standard., Graphoil : Temperatures above 180oC |
| Material: | A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy |
| Finish: | CS: Zinc Plated and Dichromated, SS : Natural |
| Accessories: | Two PTFE seal ring and four 7/16" UNF HI. Steel mounting bolts available on request. |
| Mounting Kit: | Mounting bracket with U bolts and necessary kits for fitting on 2" NB stanchion pipe stand or wall mount.(to be ordered separatley. |
| Option: | Drain port on instrument side with drain plug (Dimension 64 becomes 82) Test Port on processside with plug |
| Accessory: | Mounting Bolts - IS : 1364 - 1960 - 4 Nos. , Interface seal - PTFE / VITON - 2 Nos. |
Designed for direct or remote mounting of differential pressure transmitters. For remote mounting two oval / kidney flabges are used for connecting process pipe to manifold block These manifold block incorporates three valves, two main process isolation valves and one equalizing valve.
Dimensions shown above are for the standard 54 mm or 21/8" inch instrument connection Center distance found in mejority of instruments. The manifold is also available for instruments with other center distances for instruments connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult us for these dimensions.
| Connections: | Process : Flanged, Instrument : Flanged, Drain / Vent : 1/4" NPT (F) |
|---|---|
| Test Pressure: | @25oC Room Temperature |
| Hydostatic: | Body - 630 Kg/cm2, Seat - 420 Kg/cm2 |
| Pneumatic: | Seat - 40 Kg/cm2 |
| Gland Packing: | PTFE : Standard., Graphoil : Temperatures above 180oC |
| Material: | A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy |
| Finish: | CS: Zinc Plated and Dichromated, SS : Natural |
| Accessories: | Two PTFE seal ring and four 7/16" UNF HI. Steel mounting bolts available on request. |
| Mounting Kit: | Mounting bracket with U bolts and necessary kits for fitting on 2" NB stanchion pipe stand or wall mount.(to be ordered separatley. |
| Option: | Drain port on instrument side with drain plug (Dimension 64 becomes 82) Test Port on processside with plug |
| Accessory: | Mounting Bolts - IS : 1364 - 1960 - 4 Nos. , Interface seal - PTFE / VITON - 2 Nos. |
Designed for direct or remote mounting of differential pressure transmitters. For remote mounting two oval / kidney flabges are used for connecting process pipe to manifold block These manifold block incorporates three valves, two main process isolation valves and one equalizing valve.
Dimensions shown above are for the standard 54 mm or 21/8" inch instrument connection Center distance found in mejority of instruments. The manifold is also available for instruments with other center distances for instruments connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult us for these dimensions.
| Connections: | Process : Flanged, Instrument : Flanged, Drain / Vent : 1/4" NPT (F) |
|---|---|
| Test Pressure: | @25oC Room Temperature |
| Hydostatic: | Body - 630 Kg/cm2, Seat - 420 Kg/cm2 |
| Pneumatic: | Seat - 40 Kg/cm2 |
| Gland Packing: | PTFE : Standard., Graphoil : Temperatures above 180oC |
| Material: | A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy |
| Finish: | CS: Zinc Plated and Dichromated, SS : Natural |
| Mounting Kit: | Mounting bracket with U bolts and necessary kits for fitting on 2" NB stanchion pipe stand or wall mount.(to be ordered separatley. |
| Option: | Test Port on processside with plug |
| Accessory: | Mounting Bolts - IS : 1364 - 1960 - 4 Nos. |

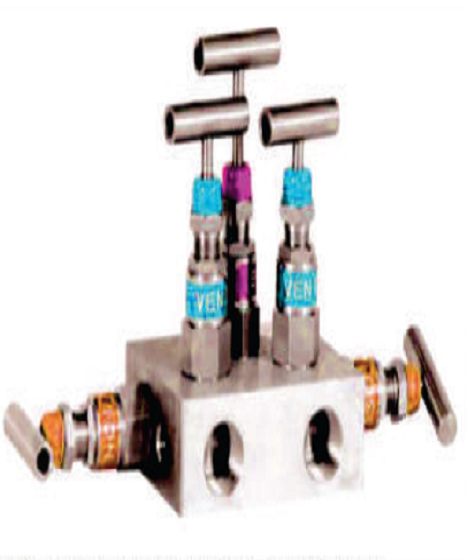

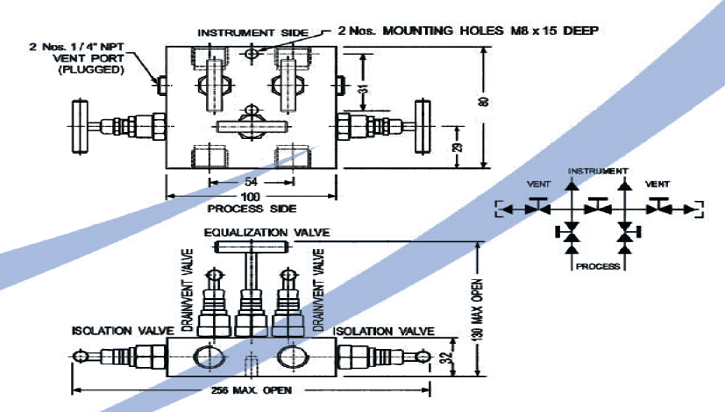

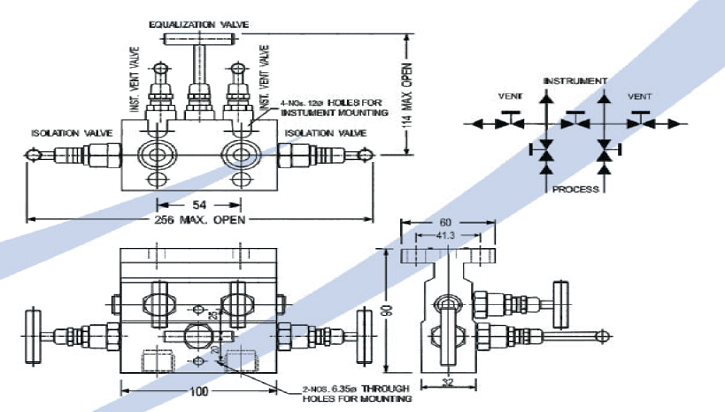

Five Valve Manifold Model "T" type Model 5TM1 is designed for direct mounting on differential pressure instruments. The manifold incorporates two processes isolation valves, one equilizer valve and two drain / vent valves ina compact block. The process connectionis threaded for connections by tube or pipe fittings.
Dimensions shown above are for the standard 54 mm or 21/8" inch instrument connection Center distance found in mejority of instruments. The manifold is also available for instruments with other center distances for instruments connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult us for these dimensions.
| Connections: | Process : 1/2" NPT (F), Instrument : Flanged, Drain / Vent : 1/4" NPT (F) |
|---|---|
| Test Pressure: | @25oC Room Temperature |
| Hydostatic: | Body - 630 Kg/cm2, Seat - 420 Kg/cm2 |
| Pneumatic: | Seat - 40 Kg/cm2 |
| Gland Packing: | PTFE : Standard., Graphoil : Temperatures above 180oC |
| Material: | A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy |
| Finish: | CS: Zinc Plated and Dichromated, SS : Natural |
| Mounting Kit: | Mounting bracket with U bolts and necessary kits for fitting on 2" NB stanchion pipe stand or wall mount.(to be ordered separatley. |
| Option: | Test Port on processside with plug |
| Accessory: | Mounting Bolts - IS : 1364 - 1960 - 4 Nos. , Interface Seal - PTFE / VITON - 2 Nos. |

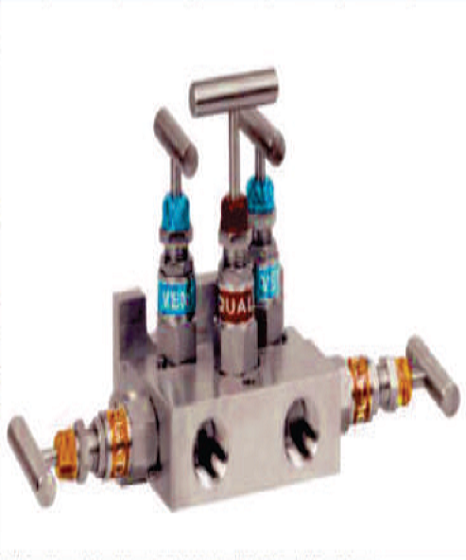

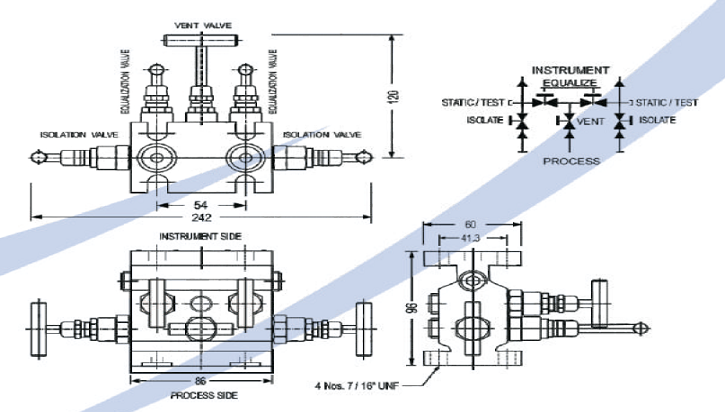

Five Valve Manifold Model "T" type Model 5TM1 is designed for direct mounting on differential pressure instruments. The manifold incorporates two processes isolation valves, one equilizer valve and two drain / vent valves ina compact block. The process connectionis threaded for connections by tube or pipe fittings.
Dimensions shown above are for the standard 54 mm or 21/8" inch instrument connection Center distance found in mejority of instruments. The manifold is also available for instruments with other center distances for instruments connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult us for these dimensions.
| Connections: | Process : 1/2" NPT (F), Instrument : Flanged, Drain / Vent : 1/4" NPT (F) |
|---|---|
| Test Pressure: | @25oC Room Temperature |
| Hydostatic: | Body - 630 Kg/cm2, Seat - 420 Kg/cm2 |
| Pneumatic: | Seat - 40 Kg/cm2 |
| Gland Packing: | PTFE : Standard., Graphoil : Temperatures above 180oC |
| Material: | A 105, A 182 Gr. F 304/304L, A 182 Gr F 316/316L Monel, Hastelloy |
| Finish: | CS: Zinc Plated and Dichromated, SS : Natural |
| Mounting Kit: | Mounting bracket with U bolts and necessary kits for fitting on 2" NB stanchion pipe stand or wall mount.(to be ordered separatley. |
| Option: | Test Port on processside with plug |
| Accessory: | Mounting Bolts - IS : 1364 - 1960 - 4 Nos. , Interface Seal - PTFE / VITON - 2 Nos. |
