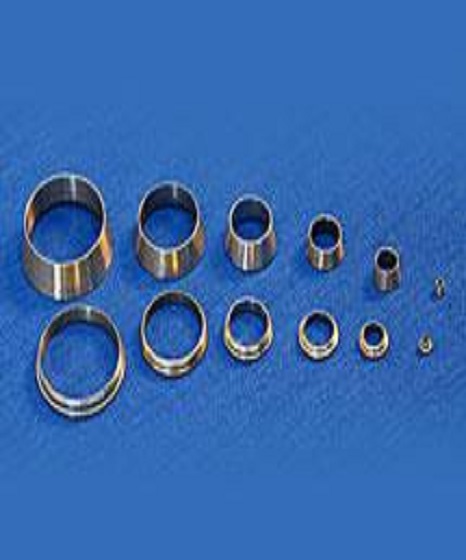

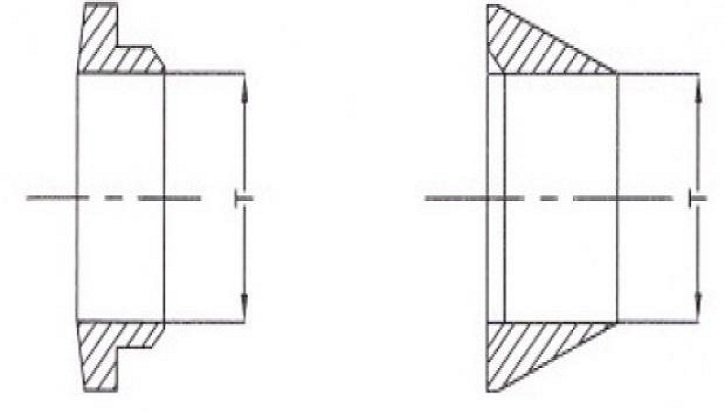

z A fitting or adapter is used in pipe systems to connect straight sections of pipe or tube, adapt to different sizes or shapes, and for other purposes such as regulating fluid flow.
| SR. NO. | T TUBE O/D | PART NO.(BACK FERRULE) | PART NO.(FRONT FERRULE) |
|---|---|---|---|
| 1 | 1/16" | 1/BF | 1/FF |
| 2 | 1/8" | 2/BF | 2/FF |
| 3 | 1/4" | 4/BF | 4/FF |
| 4 | 3/8" | 6/BF | 6/FF |
| 5 | 1/2" | 8/BF | 8/FF |
| 6 | 3/4" | 12/BF | 12/FF |
| 7 | 1" | 16/BF | 16/FF |

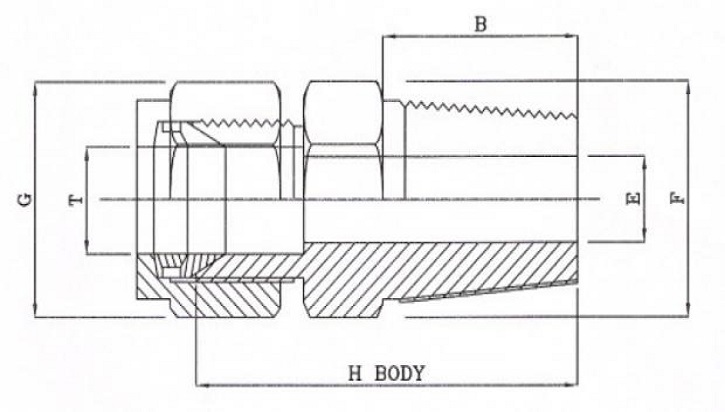

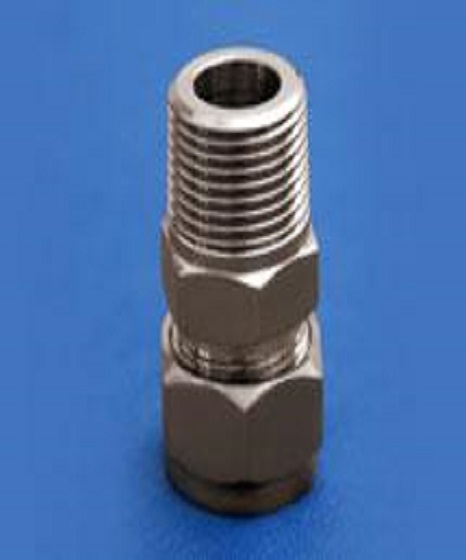

A male connector is a connector attached to a wire, cable, or piece of hardware, having one or more exposed, unshielded electrical terminal s, and constructed in such a way that it can be inserted snugly into a receptacle ( female connector ) to ensure a reliable physical and electrical connection.
| SR. NO. | PART NO. | T TUBE OD | NPT MALE PIPETHREAD SIZE | B | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 1 | 1 TF/MC/N | 1/16" | 1/16" | 9.6 | 1.3 | 7.9 | 7.9 | 20.1 |
| 2 | 1/2/TF/MC/N | 1/16" | 1/8" | 9.6 | 1.3 | 11.1 | 7.9 | 22.2 |
| 3 | 2/TF/MC/N | 1/8" | 1/8" | 9.6 | 2.2 | 11.1 | 11.1 | 23.8 |
| 4 | 2/4/TF/MC/N | 1/8" | 1/4" | 14.2 | 2.2 | 14.2 | 11.1 | 28.9 |
| 5 | 4/2/TF/MC/N | 1/4" | 1/8" | 9.6 | 4.8 | 12.7 | 14.2 | 25.4 |
| 6 | 4/6/TF/MC/N | 1/4" | 3/8" | 14.2 | 4.8 | 17.4 | 14.2 | 30.4 |
| 7 | 4/8/TF/MC/N | 1/4" | 1/2" | 19.0 | 4.8 | 22.2 | 14.2 | 37.3 |
| 8 | 6/2/TF/MC/N | 3/8" | 1/8" | 9.6 | 4.8 | 15.8 | 17.4 | 27.9 |
| 9 | 6/4/TF/MC/N | 3/8" | 1/4" | 14.2 | 7.1 | 45.8 | 17.4 | 32.5 |
| 10 | 6/TF/MC/N | 3/8" | 3/8" | 14.2 | 7.1 | 17.4 | 17.4 | 32.5 |
| 11 | 6/8/TF/MC/N | 3/8" | 1/2" | 19.0 | 7.1 | 22.2 | 17.4 | 38.8 |
| 12 | 8/4/TF/MC/N | 1/2" | 1/4" | 14.2 | 7.1 | 20.6 | 22.2 | 33.2 |
| 13 | 8/5/TF/MC/N | 1/2" | 3/8" | 14.2 | 9.6 | 20.6 | 22.2 | 38.8 |
| 14 | 8/TF/MC/N | 1/2" | 1/2" | 19.0 | 10.4 | 22.2 | 22.2 | 38.8 |
| 15 | 8/12/TF/MC/N | 1/2" | 3/4" | 19.0 | 10.4 | 27.0 | 22.2 | 40.3 |
| 16 | 8/16/TF/MC/N | 1/2" | 1" | 23.8 | 10.4 | 34.9 | 22.3 | 46.9 |
| 17 | 12/8/TF/MC/N | 3/4" | 1/2" | 19.0 | 11.9 | 27.0 | 30.0 | 40.3 |
| 18 | 12/TF/MC/N | 3/4" | 3/4" | 19.0 | 15.7 | 27.0 | 30.0 | 40.0 |
| 19 | 12/16/TF/MC/N | 3/4" | 1" | 23.8 | 15.7 | 34.9 | 28.5 | 46.9 |
| 20 | 16/8/TF/MC/N | 1" | 1/2" | 23.8 | 15.7 | 34.9 | 28.5 | 46.9 |
| 21 | 16/12/TF/MC/N | 1" | 3/4" | 19.0 | 15.7 | 35.0 | 38.1 | 45.2 |
| 22 | 16/TF/MC/N | 1" | 1" | 23.8 | 22.3 | 35.0 | 38.1 | 50.0 |
| 23 | 32/TF/MC/N | 2" | 2" | 26.9 | 45.9 | 44.4 | 76.2 | 76.2 |

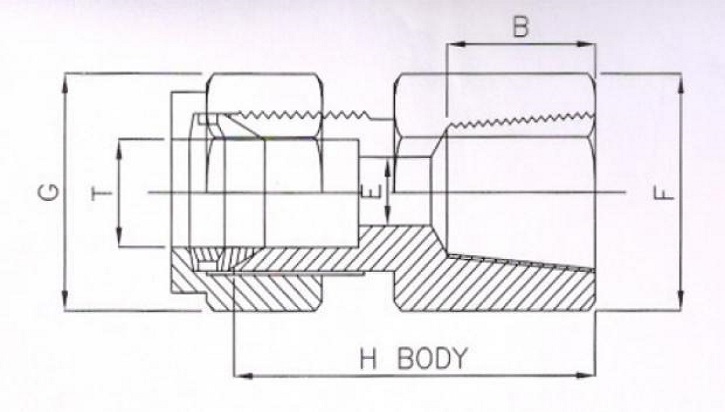

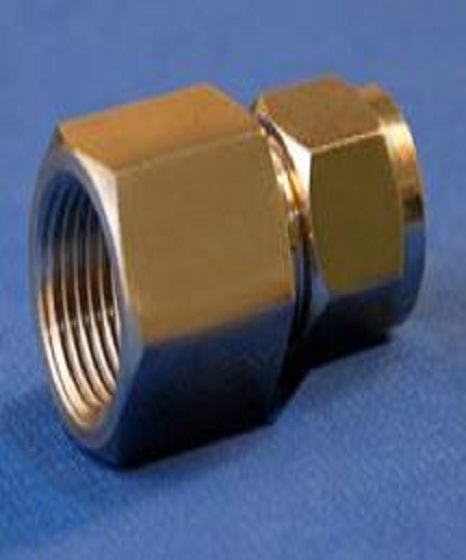

A female connector is a connector attached to a wire, cable, or piece of hardware, having one or more recessed holes with electrical terminals inside, and constructed in such a way that a plug with exposed conductors ( male connector ) can be inserted snugly into it to ensure a reliable physical and electrical.
| SR. NO. | PART NO. | T TUBE OD | NPTFEMALE PIPETHREAD SIZE | B | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 1 | 1 TF/FC / N | 1/16" | 1/16" | 9.9 | 1.3 | 11.1 | 7.9 | 19.8 |
| 2 | 2/TF/FC / N | 1/8" | 1/8" | 10.4 | 2.3 | 14.2 | 11.1 | 22.1 |
| 3 | 2/4/TF/FC / N | 1/8" | 1/4" | 14.9 | 2.3 | 19.0 | 11.1 | 26.9 |
| 4 | 4/2/TF/FC / N | 1/4" | 1/8" | 14.2 | 2.2 | 14.2 | 14.2 | 23.8 |
| 5 | 4/TF/FC / N | 1/4" | 1/4" | 14.2 | 4.8 | 19.0 | 14.2 | 28.4 |
| 6 | 4/6/TF/FC / N | 1/4" | 3/8" | 14.2 | 4.8 | 22.2 | 14.2 | 30.2 |
| 7 | 4/8/TF/FC / N | 1/4" | 1/2" | 19.0 | 4.8 | 27.0 | 14.2 | 35.0 |
| 8 | 6/4/TF/FC / N | 3/8" | 1/4" | 14.2 | 7.1 | 19.0 | 17.4 | 30.2 |
| 9 | 6/TF/FC / N | 3/8" | 3/8" | 14.2 | 7.1 | 22.2 | 17.4 | 31.7 |
| 10 | 6/8/TF/FC / N | 3/8" | 1/2" | 19.0 | 7.1 | 27.0 | 17.4 | 36.5 |
| 11 | 8/4/TF/FC / N | 1/2" | 1/4" | 14.2 | 10.4 | 20.6 | 22.2 | 30.2 |
| 12 | 8/6/TF/FC / N | 1/2" | 3/8" | 14.2 | 10.4 | 22.2 | 22.2 | 31.7 |
| 13 | 8/TF/FC / N | 1/2" | 1/2" | 19.0 | 10.4 | 27.0 | 22.2 | 36.5 |
| 14 | 8/12/TF/FC / N | 1/2" | 3/4" | 19.0 | 10.4 | 32.0 | 22.2 | 38.1 |
| 15 | 12/8/TF/FC / N | 3/4" | 1/2" | 19.0 | 15.7 | 27.0 | 30.0 | 36.5 |
| 16 | 12/TF/FC / N | 3/4" | 3/4" | 19.0 | 15.7 | 32.0 | 30.0 | 38.1 |
| 17 | 16/12/TF/FC / N | 1" | 3/4" | 19.0 | 22.3 | 35.0 | 38.1 | 41.1 |
| 18 | 16/TF/FC / N | 1" | 1" | 25.4 | 22.3 | 41.4 | 38.1 | 50.0 |

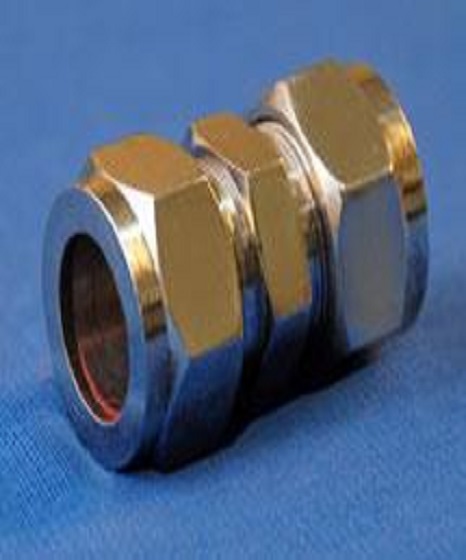

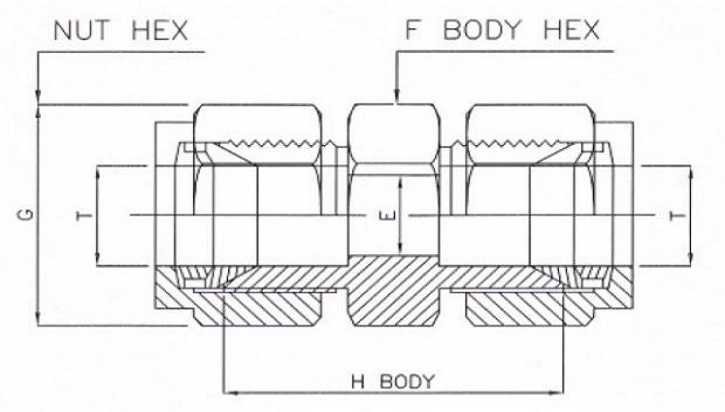

Union Tube Fitting is a compression type tube fitting that is sealed by pressure caused by the interaction of threaded portions of the fitting.
| SR. NO. | PART NO | T TUBE OD | E | F | G | H |
|---|---|---|---|---|---|---|
| 1 | 1/TF/TU | 1/16" | 1.2 | 7.9 | 7.9 | 17.5 |
| 2 | 2/TF/TU | 1/8" | 2.2 | 11.1 | 11.1 | 22.3 |
| 3 | 4/TF/TU | 1/4" | 4.8 | 12.7 | 14.2 | 26.1 |
| 4 | 6/TF/TU | 3/8" | 7.1 | 15.8 | 17.4 | 30.2 |
| 5 | 8/TF/TU | 1/2" | 10.4 | 20.6 | 22.2 | 30.9 |
| 6 | 12/TF/TU | 3/4" | 15.7 | 27.0 | 30.0 | 33.2 |
| 7 | 16/TF/TU | 1" | 22.3 | 35.0 | 38.0 | 40.3 |

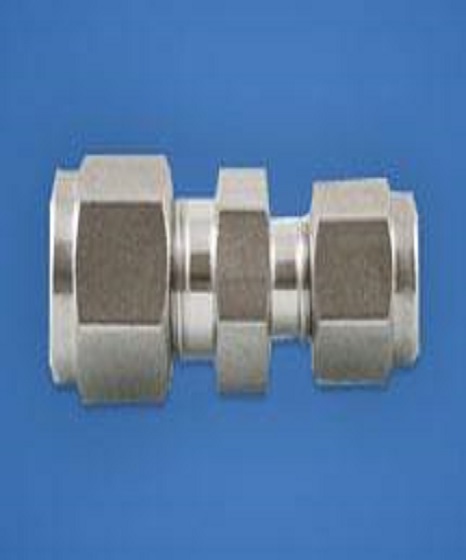

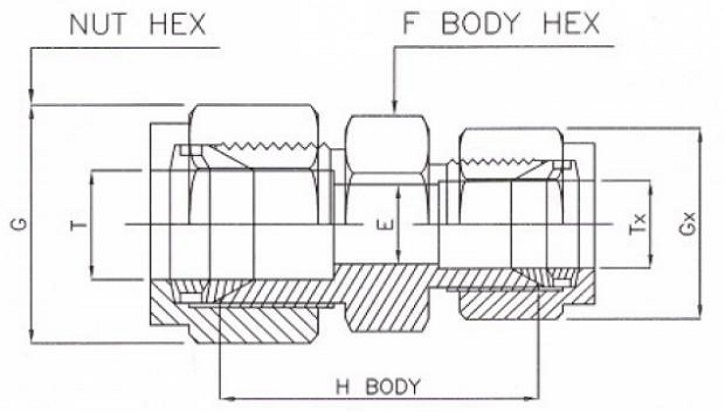

Reducing Union is basically a sort of fitting component that is completely designed for an effectively fitting of two separated pipes. ... Similar small diameter pipes and dissimilar pipes require a positive seal and it can assemble easily with the assistance of reducing union.
| SR. NO. | PART NO | T TUBE OD | Tx TUBE OD | E | F | G | Gx | H |
|---|---|---|---|---|---|---|---|---|
| 1 | 4/2/TF/TU/-R | 1/4" | 1/8" | 2.2 | 12.7 | 14.2 | 11.1 | 24.6 |
| 2 | 6/2/TF/TU/-R | 3/8" | 1/8" | 2.2 | 15.8 | 17.4 | 11.1 | 25.4 |
| 3 | 6/4/TF/TU/-R | 3/8" | 1/4" | 4.8 | 15.8 | 17.4 | 14.2 | 28.4 |
| 4 | 8/2/TF/TU/-R | 1/2" | 1/8" | 2.2 | 20.6 | 22.2 | 11.1 | 28.4 |
| 5 | 8/4/TF/TU/-R | 1/2" | 1/4" | 4.8 | 20.6 | 22.2 | 14.2 | 29.4 |
| 6 | 8/6/TF/TU/-R | 1/2" | 3/8" | 7.1 | 20.6 | 22.2 | 17.4 | 31.0 |
| 7 | 12/4/TF/TU/-R | 3/4" | 1/4" | 4.8 | 26.9 | 28.5 | 14.2 | 31.7 |
| 8 | 12/6/TF/TU/-R | 3/4" | 3/8" | 7.1 | 26.9 | 28.5 | 17.4 | 33.2 |
| 9 | 12/8/TF/TU/-R | 3/4" | 1/2" | 10.4 | 26.9 | 28.5 | 22.2 | 33.2 |
| 10 | 16/8/TF/TU/-R | 1" | 1/2" | 10.4 | 34.9 | 38.1 | 22.2 | 40.3 |
| 11 | 16/12/TF/TU/-R | 1" | 3/4" | 15.7 | 34.9 | 38.1 | 28.5 | 40.3 |

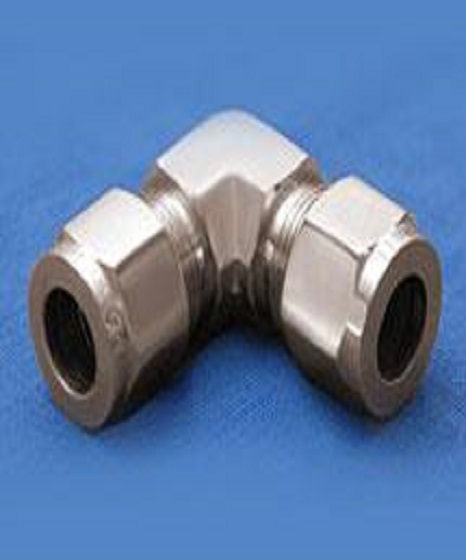

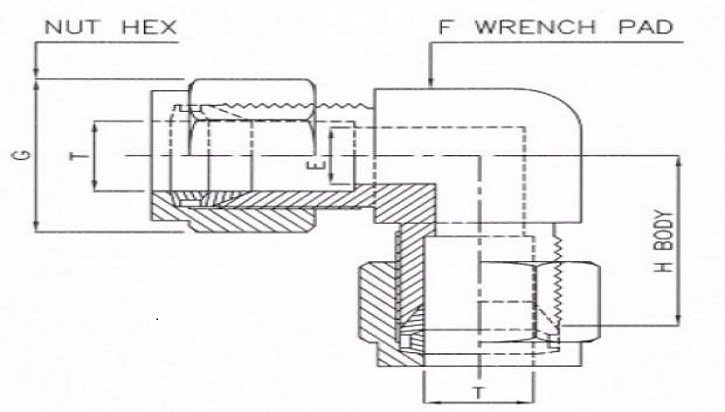

Our in-house production of Union Elbow is manufactured with excellent quality of raw materials to suit the fixing work mainly in electrical industries, air conditioning industries. These products of ours have been well demanded and extensively used by the clients of diverse category in different size. These Elbows have part numbers of numerous kinds to select from.
| SR. NO. | PART NO | T TUBE OD | E | F | G | H |
|---|---|---|---|---|---|---|
| 1 | 1/TF/UE | 1/16" | 1.3 | 9.5 | 7.9 | 14.0 |
| 2 | 2/TF/UE | 1/8" | 2.3 | 9.5 | 11.1 | 15.7 |
| 3 | 4/TF/UE | 1/4" | 4.8 | 12.7 | 14.2 | 19.6 |
| 4 | 6/TF/UE | 3/8" | 7.1 | 15.9 | 17.5 | 23.1 |
| 5 | 8/TF/UE | 1/2" | 10.4 | 20.6 | 22.2 | 26.0 |
| 6 | 12/TF/UE | 3/4" | 15.7 | 17.5 | 28.6 | 29.7 |
| 7 | 16/TF/UE | 1" | 22.4 | 35.0 | 38.1 | 26.8 |
| 8 | 32/TF/UE | 2" | 45.9 | 69.8 | 76.2 | 69.8 |

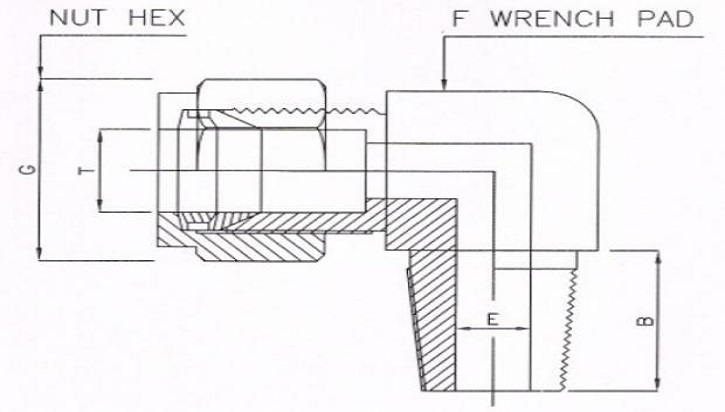

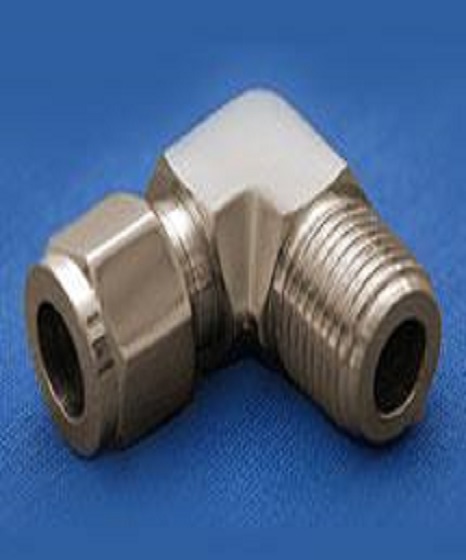

Male pipe elbows and female pipe elbows are popular tube fittings which provide an angled change in the direction of a tubing run. While a male pipe elbow is used to connect fractional tube to female tapered pipe thread, a female elbow is used to connect fractional tube to male NPT thread. These types of tube fittings like male elbows and female elbows have been specifically designed for use on instrumentation, process and control systems and equipment employed in chemical, petroleum, fluid power, electronic and pulp and paper plants.
| SR. NO. | PART NO. | T TUBE OD | NPT MALE PIPE THREAD SIZE | B | E | F | G |
|---|---|---|---|---|---|---|---|
| 1 | 1/TF/ME/N | 1/16" | 1/16" | 9.6 | 1.3 | 11.1 | 7.9 |
| 2 | 1/2/TF/ME/N | 1/6" | 1/8" | 9.6 | 1.3 | 11.1 | 7.9 |
| 3 | 2/TF/ME/N | 1/8" | 1/8" | 9.6 | 2.2 | 11.1 | 11.1 |
| 4 | 2/4/TF/ME/N | 1/8" | 1/4" | 14.2 | 2.2 | 12.7 | 11.1 |
| 5 | 4/TF/ME/N | 1/4" | 1/4" | 19.0 | 4.8 | 15.0 | 14.2 |
| 6 | 4/TF/ME/N | 1/4" | 3/8" | 14.2 | 4.8 | 17.4 | 14.2 |
| 7 | 4/8/TF/ME/N | 1/4" | 1/2" | 19.0 | 4.8 | 23.0 | 14.2 |
| 8 | 6/TF/ME/N | 3/8" | 1/4" | 14.2 | 7.1 | 15.8 | 17.4 |
| 9 | 6/TF/ME/N | 3/8" | 3/8" | 14.2 | 7.1 | 17.4 | 17.4 |
| 10 | 6/8/TF/ME/N | 3/8" | 1/2" | 19.0 | 7.1 | 23.0 | 17.4 |
| 11 | 8/4/TF/ME/N | 1/2" | 1/4" | 14.2 | 7.1 | 20.6 | 22.2 |
| 12 | 8/6/TF/ME/N | 1/2" | 3/8" | 14.2 | 9.6 | 20.6 | 22.2 |
| 13 | 8/TF/ME/N | 1/2" | 1/2" | 19.0 | 10.4 | 23.0 | 22.2 |
| 14 | 8/12/TF/ME/N | 1/2" | 3/4" | 19.0 | 10.4 | 27.0 | 22.2 |
| 15 | 12/8/TF/ME/N | 3/4" | 1/2" | 19.0 | 11.9 | 27.0 | 30.0 |
| 16 | 12/TF/ME/N | 3/4" | 3/4" | 19.0 | 15.7 | 27.0 | 30.0 |
| 17 | 16/12/TF/ME/N | 1" | 3/4" | 19.0 | 15.7 | 37.0 | 38.0 |

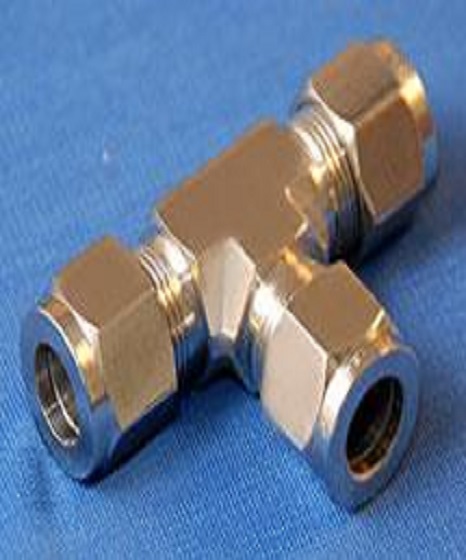

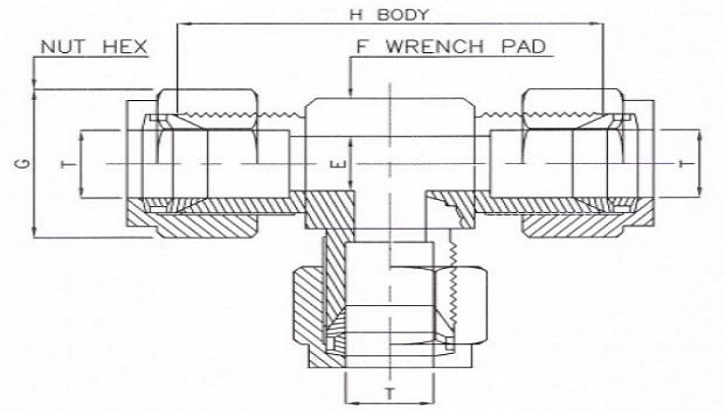

Union Tee Pipe Fittings, Cu-Ni 70/30 Union Tee Fittings, Cu-Ni 90/10 Union Tee Fittings Supplier, Stainless Steel Union Tee Fittings, Copper Nickel Union Tee Fittings Supplier, Union Tee Tube Fittings Exporter, Union Tee Compression Fittings Supplier, Carbon Steel Union Tee Fittings, Copper Nickel Union Tee Exporter,Leading manufacturer of Union Tee Instrumentation Fittings, SS 316 Union Tee Instrumentation Pipe Fittings, Brass Alloy Union Tee, Union Tee Fittings Stockist, SS 304 Union Tee.
| SR. NO. | PART NO | T TUBE OD | E | F | G | H |
|---|---|---|---|---|---|---|
| 1 | 1/TF/T-U | 1/16" | 1.3 | 9.5 | 7.9 | 27.9 |
| 2 | 2/TF/T-U | 1/8" | 2.2 | 9.5 | 11.1 | 31.4 |
| 3 | 4/TF/T-U | 1/4" | 4.8 | 12.7 | 14.2 | 39.1 |
| 4 | 6/TF/T-U | 2/8" | 7.1 | 15.8 | 17.4 | 46.2 |
| 5 | 8/TF/T-U | 1/2" | 10.4 | 20.6 | 22.2 | 51.8 |
| 6 | 12/TF/T-U | 3/4" | 15.7 | 27 | 28.5 | 59.4 |
| 7 | 16/TF/T-U | 1" | 22.3 | 35 | 38.1 | 73.6 |
| 8 | 32/TF/T-U | 2" | 45.9 | 69.8 | 76.2 | 139.7 |

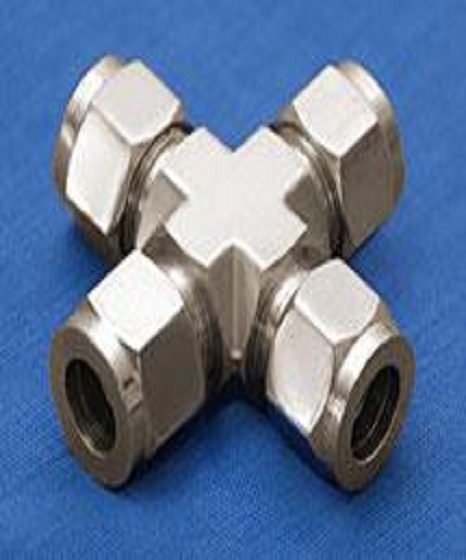

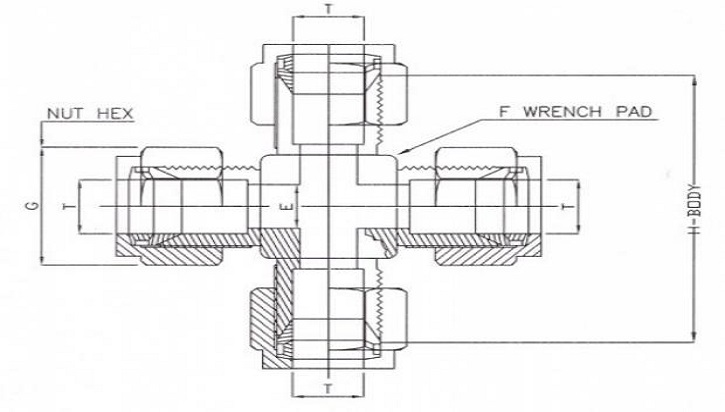

Shashidhara Engineers Works Offers dimensionally exact, robust and simple to install Union Cross. These union cross are available in multiple specifications, these four way fittings often have female threaded ends or solvent welded socket ends and these union cross fittings are in demand for fire sprinkler systems.
| SR NO. | PART NO. | T TUBE OD | E | F | G | H |
|---|---|---|---|---|---|---|
| 1 | 2/TF/ + | 1/8" | 2.2 | 9.5 | 11.1 | 31.1 |
| 2 | 4/TF/ + | 1/4" | 4.8 | 15 | 14.2 | 39.1 |
| 3 | 6/TF/ + | 3/8" | 7.1 | 17.5 | 17.4 | 46.2 |
| 4 | 8/TF/ + | 1/2" | 10.4 | 22.2 | 22.2 | 51.8 |
| 5 | 12/TF/ + | 3/4" | 15.7 | 26.9 | 28.5 | 59.4 |
| 6 | 16/TF/ + | 1" | 22.2 | 34.9 | 38.1 | 73.6 |

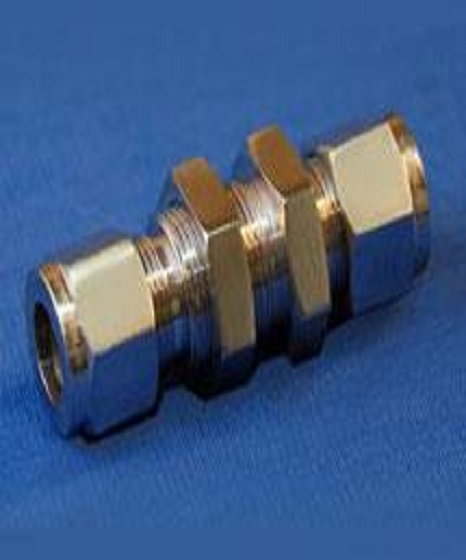

Bulkhead Unions are optimally designed to directly thread through your equipment housing to connect internal tubing to the outside. ... Each union has unique 3/8-24 external threads and comes complete with a stainless steel nut and lock washer to hold it in place.
| SR. NO. | PART NO. | T TUBE OD | E | F | G | H | Hx |
|---|---|---|---|---|---|---|---|
| 1 | 1/TF/BHU | 1/6" | 1.2 | 7.9 | 7.9 | 23.8 | 13.4 |
| 2 | 2/TF/BHU | 18" | 2.2 | 12.7 | 11.1 | 38.1 | 24.6 |
| 3 | 4/TF/BHU | 1/4" | 4.8 | 15.2 | 14.2 | 42.9 | 26.1 |
| 4 | 6/TF/BHU | 3/8" | 7.1 | 19 | 17.4 | 47.4 | 29.4 |
| 5 | 8/TF/BHU | 1/2" | 10.4 | 23.8 | 22.2 | 50.8 | 31.7 |
| 6 | 12/TF/BHU | 3/4" | 16 | 30.1 | 28.5 | 58.6 | 37.3 |
| 7 | 16/TF/BHU | 1" | 22.3 | 41.2 | 38.1 | 71.3 | 45.2 |
| 8 | 32/TF/BHU | 2" | 45.9 | 69.8 | 76.2 | 105.6 | 56.3 |

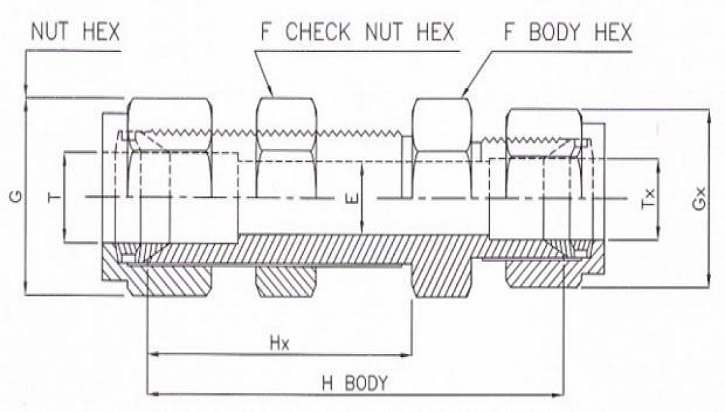

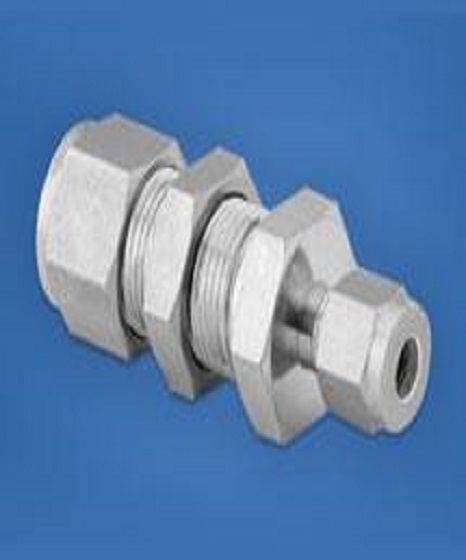

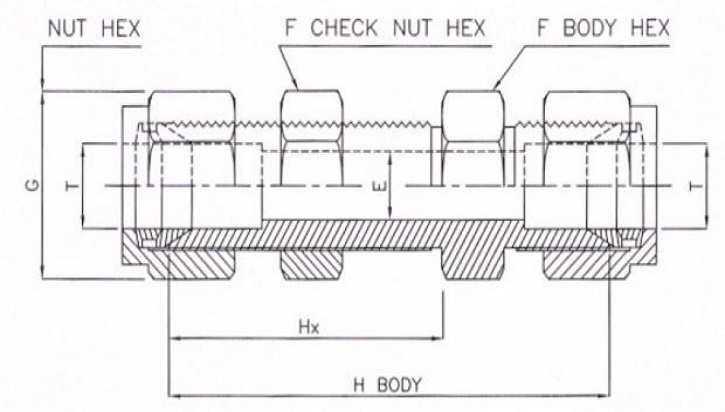

Bulkhead reducing unions are straight tube fittings that have unequall size tube fitting end connections and at threaded body designed to be secured in a bulkhead or cabinet with a bulkhead nut.
| SR. NO. | PART NO | T TUBE OD | Tx TUBE OD | E | F | G | Gx | H | Hx |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4/2/TF/BHU/R | 1/4" | 1/8" | 2.2 | 15.8 | 14.2 | 11.1 | 41.1 | 26.1 |
| 2 | 6/4/TF/BHU/R | 3/8" | 1/4" | 4.8 | 19 | 17.4 | 14.2 | 45.9 | 29.4 |
| 3 | 8/4/2/TF/BHU/R | 1/2" | 1/4" | 4.8 | 23.8 | 22.2 | 14.2 | 49.2 | 31.7 |

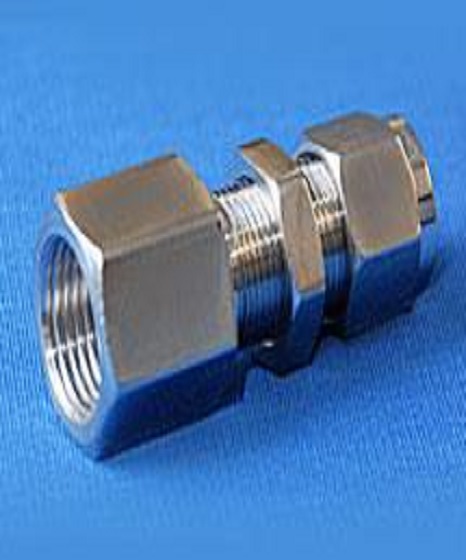

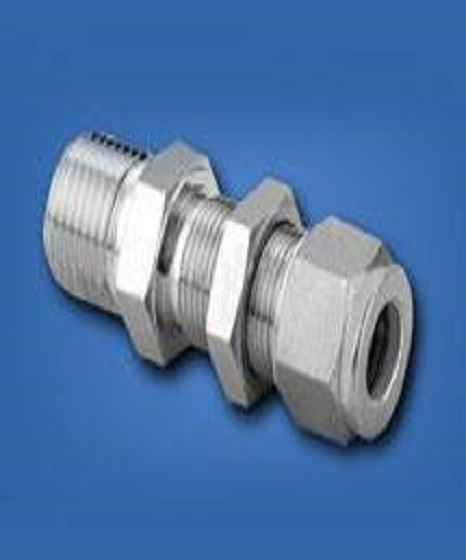

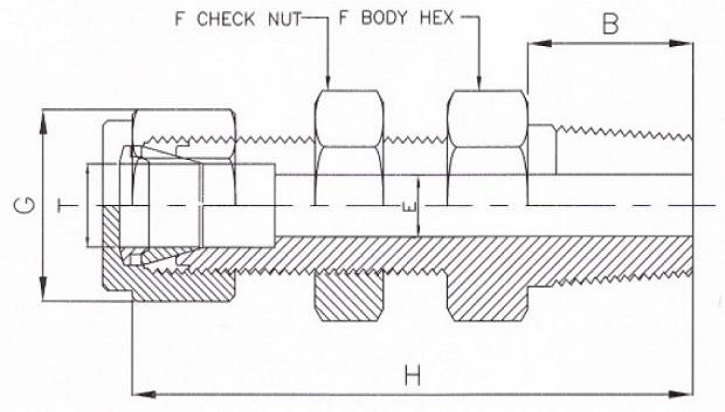

Male Bulkhead Connector Exporter, Carbon Steel Male Bulkhead Connector Pipe Fittings, Cu-Ni 90/10 Male Bulkhead Connector, Male Bulkhead Connector Adapter, Copper Nickel Union Fittings, Male Bulkhead Connector Stockist, Stainless Steel Male Bulkhead Connector Fittings Stockist, SS 304 Male Bulkhead Connector, Male Bulkhead Connector Instrumentation Pipe Fitting, Male Bulkhead Connector Tubing, Alloy Steel Male Bulkhead Connector Pipes Fittings Exporter,Most Recognized Male Bulkhead Connector Pipe Fitting Manufacturer, Nickel Alloy Male Bulkhead Connector Fittings, SS 316 Male Bulkhead Connector Fittings, Cu-Ni 70/30 Male Bulkhead Connector Fittings Stockholder, Male Bulkhead Connector with Ferrule Fittings Supplier.
| SR. NO. | PART NO | T TUBE OD | MALE PIPE THREAD SIZE (NPTM) | E | B | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 1 | 2/TF/BHM/N | 1/8" | 1/8" | 2.2 | 9.6 | 12.7 | 11.1 | 39.8 |
| 2 | 4/2/TF/BHM/N | 1/4" | 1/8" | 4.8 | 9.6 | 15.8 | 14.2 | 42.1 |
| 3 | 4/TF/BHM/N | 1/4" | 1/4" | 4.8 | 14.2 | 15.8 | 14.2 | 46.7 |
| 4 | 6/4/TF/BHM/N | 3/8" | 1/4" | 7.1 | 14.2 | 19.0 | 17.4 | 50.0 |
| 5 | 6/TF/BHM/N | 3/8" | 3/8" | 7.1 | 14.2 | 19.0 | 17.4 | 50.0 |
| 6 | 6/8/TF/BHM/N | 3/8" | 1/2" | 7.1 | 19.0 | 22.2 | 17.4 | 56.3 |
| 7 | 8/6/TF/BHM/N | 1/2" | 3/8" | 9.6 | 14.2 | 23.8 | 22.2 | 53.0 |
| 8 | 8/TF/BHM/N | 1/2" | 1/2" | 10.4 | 19.0 | 23.8 | 22.2 | 58.6 |
| 9 | 12/TF/BHM/N | 3/4" | 3/4" | 15.7 | 19.0 | 30.1 | 28.5 | 66.0 |
| 10 | 16/TF/BHM/N | 1" | 1" | 22.3 | 23.8 | 41.2 | 38.1 | 81.0 |

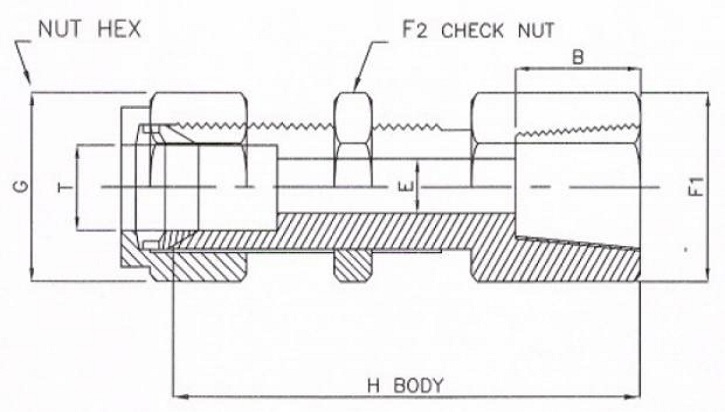

ANSI / ASME B 1.20.1-2013. Subject to dimensional changes.
| SR. NO. | PART NO | T TUBE OD | MALE PIPE THREAD SIZE (NPTF) | B | E | F1 | F1 | G | H |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2/TF/BHF/N | 1/8" | 1/8" | 10.4 | 2.2 | 14.2 | 12.7 | 11.1 | 38.1 |
| 2 | 4/TF/BHF/N | 1/4" | 1/4" | 14.2 | 4.8 | 19.0 | 15.8 | 14.2 | 44.4 |
| 3 | 4/2/TF/BHF/N | 1/4" | 1/8" | 9.6 | 4.8 | 15.8 | 15.8 | 14.2 | 39.6 |
| 4 | 6/4/TF/BHF/N | 3/8" | 1/4" | 14.2 | 7.1 | 19.0 | 19.0 | 17.4 | 47.7 |
| 5 | 8/6/TF/BHF/N | 1/2" | 3/8" | 14.2 | 10.4 | 24.0 | 24.0 | 22.2 | 51.5 |
| 6 | 8/TF/BHF/N | 1/2" | 1/2" | 19.0 | 10.4 | 27.0 | 24.0 | 22.2 | 56.3 |

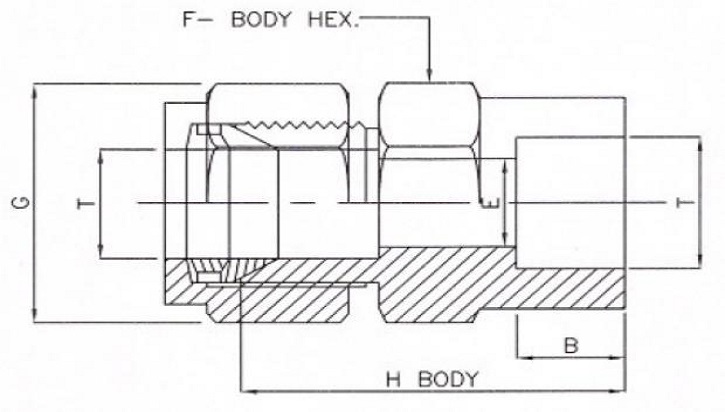

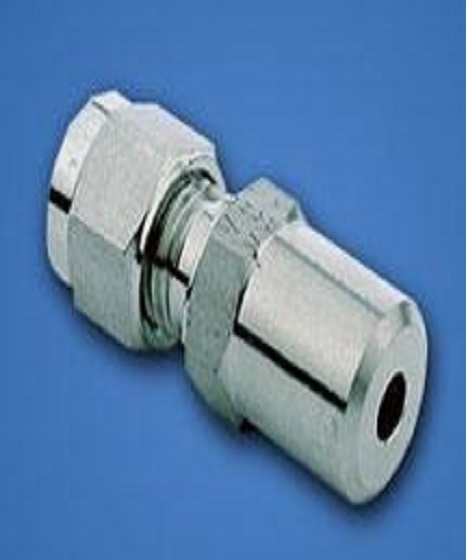

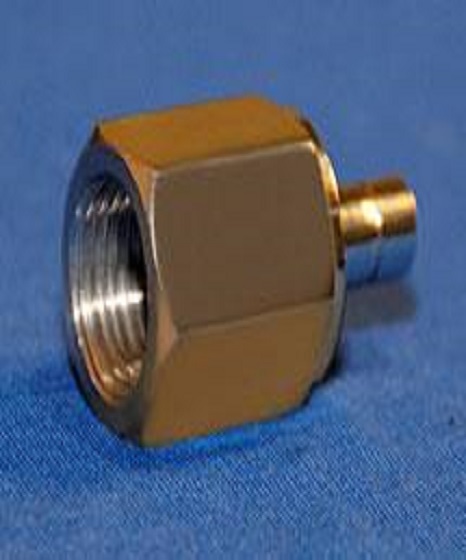

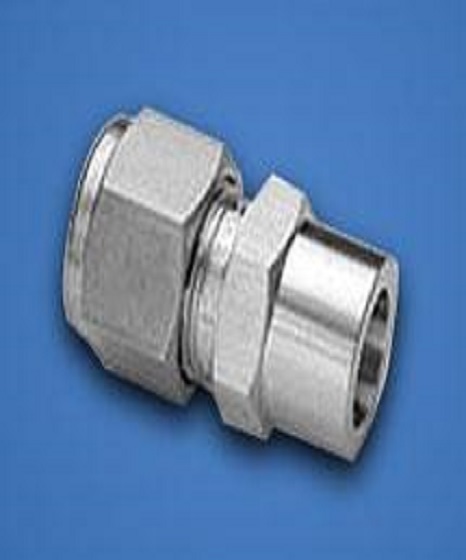

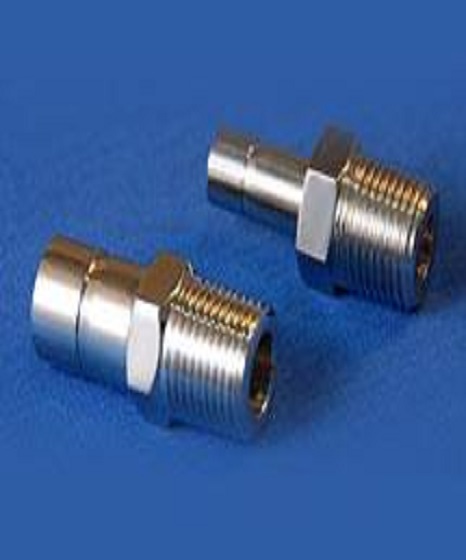

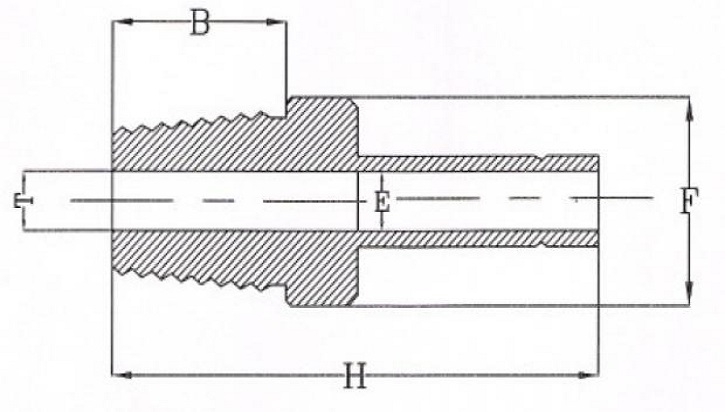

A Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fittings, Socket Weld fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.
| SR. NO. | PART NO. | T TUBE OD | B | E | F | G | H |
|---|---|---|---|---|---|---|---|
| 1 | 2/TF / MC /SW | 1/8" | 6.3 | 2.2 | 11.1 | 11.1 | 22.3 |
| 2 | 4/TF / MC /SW | 1/4" | 7.8 | 4.8 | 12.7 | 14.2 | 26.1 |
| 3 | 6/TF / MC /SW | 3/8" | 9.6 | 7.1 | 15.8 | 17.4 | 30.2 |
| 4 | 8/TF / MC /SW | 1/2" | 12.7 | 10.4 | 20.6 | 22.2 | 30.9 |
| 5 | 12/TF / MC /SW | 3/4" | 14.2 | 15.7 | 26.9 | 28.5 | 33.2 |
| 6 | 16/TF / MC /SW | 1" | 19.0 | 22.3 | 34.9 | 38.1 | 40.3 |
Pipe Tee is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. It is a short piece of pipe with a lateral outlet. Pipe Tee is used to connect pipelines with a pipe at a right angle with the line.
| SR. NO. | PART NO | T TUBE OD | B | E | F | G | H |
|---|---|---|---|---|---|---|---|
| 1 | 1/TF/MC/NB | 1/8" | 9.6 | 2.2 | 11.1 | 11.1 | 23.8 |
| 2 | 4/TF/MC/NB | 1/4" | 14.2 | 4.8 | 14.2 | 14.2 | 30.4 |
| 3 | 6/TF/MC/NB | 3/8" | 14.2 | 7.1 | 17.4 | 17.4 | 32.5 |
| 4 | 8/TF/MC/NB | 1/2" | 19.0 | 10.4 | 22.2 | 22.2 | 38.8 |
| 5 | 12/TF/MC/NB | 3/4" | 19.0 | 15.7 | 26.9 | 28.5 | 40.3 |
| 6 | 16/TF/MC/NB | 1" | 23.8 | 22.3 | 34.9 | 38.1 | 50.0 |

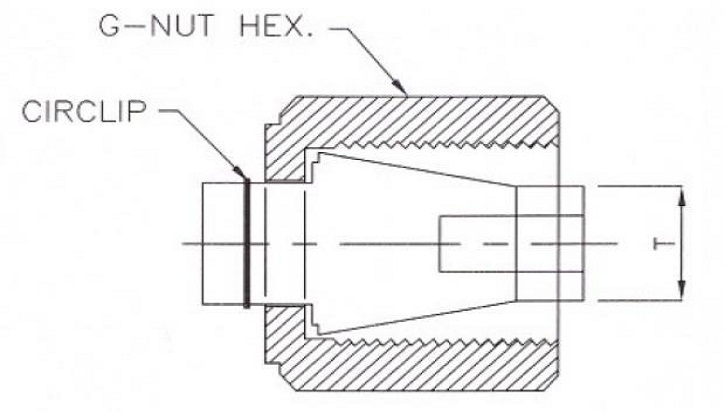

Circlips (also known as retaining rings) are types of fastener which look like flexible, open-ended rings. Circlips are typically made from stainless steel and similar metals. Alternative names for circlips include retaining rings, retaining clips, C-type, Jesus clips, snap rings, and E-type.
| SR. NO. | PART NO. | T TUBE O/D | G |
|---|---|---|---|
| 1 | 1/CPg | 1/16" | 15.8 |
| 2 | 2/CPg | 1/8" | 11.1 |
| 3 | 4/CPg | 1/4" | 14.2 |
| 4 | 6/CPg | 3/8" | 17.4 |
| 5 | 8/CPg | 1/2" | 22.2 |
| 6 | 12/CPg | 3/4" | 28.5 |
| 7 | 16/CPg | 1" | 38.1 |

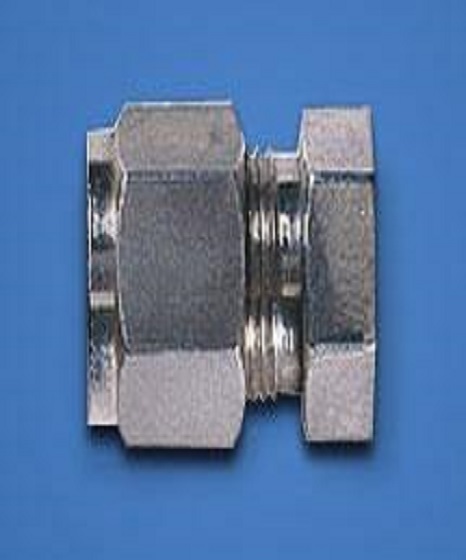

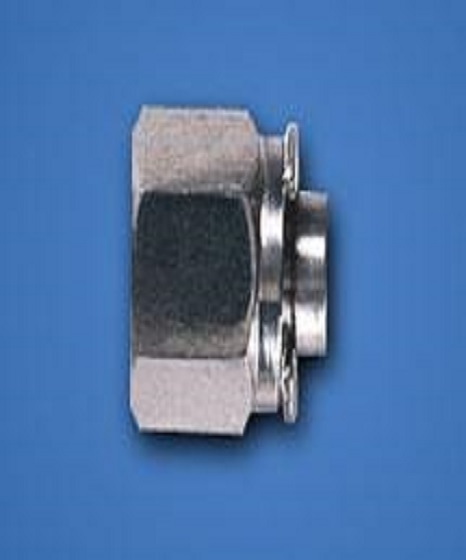

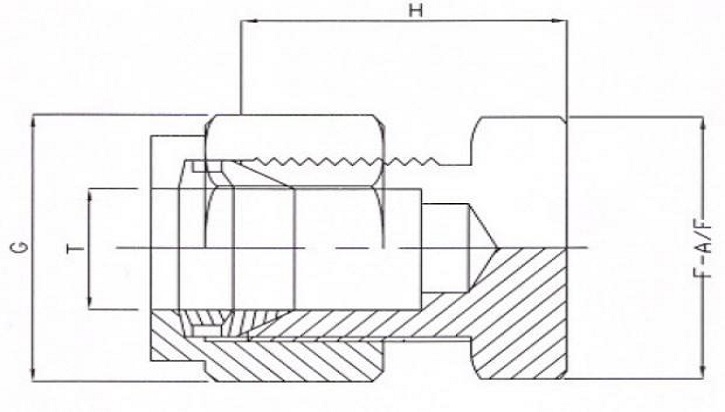

A cap limits how much you pay for all your journeys in one day or week. You can make as many journeys as you like and when all your fares add up to a certain amount, we won't charge you more (your fare is automatically capped).
| SR. NO. | PART NO. | T TUBE O/D | F | G | H |
|---|---|---|---|---|---|
| 1 | 1/TE/CAP | 1/16" | 7.9 | 7.9 | 11.1 |
| 2 | 2/TE/CAP | 1/8" | 11.1 | 11.1 | 13.4 |
| 3 | 4/TE/CAP | 1/4" | 12.7 | 14.2 | 16.0 |
| 4 | 6/TE/CAP | 3/8" | 15.8 | 17.4 | 18.2 |
| 5 | 8/TE/CAP | 1/2" | 20.6 | 22.2 | 19.0 |
| 6 | 12/TE/CAP | 3/4" | 26.9 | 28.5 | 21.3 |
| 7 | 16/TE/CAP | 1" | 34.9 | 38.1 | 25.4 |
A male connector is a connector attached to a wire, cable, or piece of hardware, having one or more exposed, unshielded electrical terminal s, and constructed in such a way that it can be inserted snugly into a receptacle ( female connector ) to ensure a reliable physical and electrical connection .
| SR. NO. | PART NO | T TUBE OD | MALE PIPE THREAD SIZE (NPT) | B | E | F | H |
|---|---|---|---|---|---|---|---|
| 1 | 2/TF/MA-Tx | 1/8" | 1/8" | 9.6 | 4.8 | 11.1 | 29.4 |
| 2 | 2/4/TF/MA-Tx | 1/8" | 1/4" | 14.2 | 7.1 | 14.2 | 34.7 |
| 3 | 4/2/TF/MA-Tx | 1/4" | 1/4" | 9.6 | 4.8 | 11.1 | 31.7 |
| 4 | 4/TF/MA-Tx | 1/4" | 1/4" | 14.2 | 4.8 | 14.2 | 37.0 |
| 5 | 4/6/TF/MA-Tx | 1/4" | 3/8" | 14.2 | 4.8 | 17.4 | 37.8 |
| 6 | 4/8/TF/MA-Tx | 1/4" | 1/2" | 19.0 | 4.8 | 22.2 | 43.8 |
| 7 | 6/4/TF/MA-Tx | 3/8" | 1/4" | 14.2 | 7.1 | 14.2 | 38.8 |
| 8 | 6/TF/MA-Tx | 3/8" | 3/8" | 14.2 | 7.1 | 17.4 | 39.6 |
| 9 | 6/8/TF/MA-Tx | 3/8" | 1/2" | 19.0 | 7.1 | 22.2 | 45.2 |
| 10 | 8/4/TF/MA-Tx | 1/2" | 1/4" | 14.2 | 7.1 | 14.2 | 44.4 |
| 11 | 8/4/TF/MA-Tx | 1/2" | 3/8" | 14.2 | 9.9 | 17.4 | 45.2 |
| 12 | 8/TF/MA-Tx | 1/2" | 1/2" | 19.0 | 9.9 | 22.2 | 50.8 |
| 13 | 12/8/TF/MA-Tx | 3/4" | 1/2" | 19.0 | 11.9 | 22.2 | 52.3 |
| 14 | 12/TF/MA-Tx | 3/4" | 3/4" | 19.0 | 14.9 | 42.8 | 52.3 |
| 15 | 16/12/TF/MA-Tx | 1" | 3/4" | 19.0 | 15.7 | 26.9 | 58.6 |
| 16 | 16/TF/MA-Tx | 1" | 1" | 24.0 | 20.3 | 34.9 | 66.0 |
A female connector is a connector attached to a wire, cable, or piece of hardware, having one or more recessed holes with electrical terminals inside, and constructed in such a way that a plug with exposed conductors ( male connector ) can be inserted snugly into it to ensure a reliable physical and electrical
| SR. NO. | PART NO | T TUBE OD | MALE PIPE THREAD SIZE (NPTF) | B | E | F | H |
|---|---|---|---|---|---|---|---|
| 1 | 2/TF/FA-Tx | 1/8" | 1/8" | 10.4 | 2.2 | 14.2 | 31.4 |
| 2 | 2/4/TF/FA-Tx | 1/8" | 1/4" | 14.9 | 2.2 | 19.2 | 35.3 |
| 3 | 4/2/TF/FA-Tx | 1/4" | 1/8" | 10.4 | 4.8 | 14.2 | 33.0 |
| 4 | 4/TF/FA-Tx | 1/4" | 1/4" | 14.9 | 4.8 | 14.2 | 37.0 |
| 5 | 4/6/TF/FA-Tx | 1/4" | 3/8" | 14.9 | 4.8 | 22.2 | 39.3 |
| 6 | 4/8/TF/FA-Tx | 1/4" | 1/2" | 19.8 | 4.8 | 26.9 | 45.4 |
| 7 | 6/4/TF/FA-Tx | 3/8" | 1/4" | 14.9 | 7.1 | 19.2 | 39.1 |
| 8 | 6/TF/FA-Tx | 3/8" | 3/8" | 14.9 | 7.1 | 19.2 | 40.3 |
| 9 | 6/8/TF/FA-Tx | 3/8" | 1/2" | 19.8 | 7.1 | 26.9 | 46.7 |
| 10 | 8/4/TF/FA-Tx | 1/2" | 1/4" | 14.9 | 9.9 | 19.2 | 45.4 |
| 11 | 8/6/TF/FA-Tx | 1/2" | 3/8" | 14.9 | 9.9 | 19.2 | 45.4 |
| 12 | 8/TF/FA-Tx | 1/2" | 1/2" | 19.8 | 9.9 | 26.9 | 51.8 |
| 13 | 12/8/TF/FA-Tx | 3/4" | 1/2" | 19.8 | 14.9 | 26.9 | 52.8 |
| 14 | 12/TF/FA-Tx | 3/4" | 3/4" | 20.5 | 14.9 | 33.3 | 54.8 |
| 15 | 16/12/TF/MA-Tx | 3/4" | 1" | 25.4 | 14.9 | 41.2 | 58.4 |
| 16 | 16/TF/MA-Tx | 1" | 3/4" | 20.5 | 20.3 | 33.3 | 60.7 |
| 17 | 16/TF/MA-Tx | 1" | 1" | 25.4 | 20.3 | 41.2 | 64.2 |
© 2021 SEW , All Rights Reserved.
